Double Top & Double Bottom Patterns: Entry Rules, Stops & EUR/USD Examples
For the full context of where double top/bottom fits within the pattern taxonomy, see the chart patterns guide.

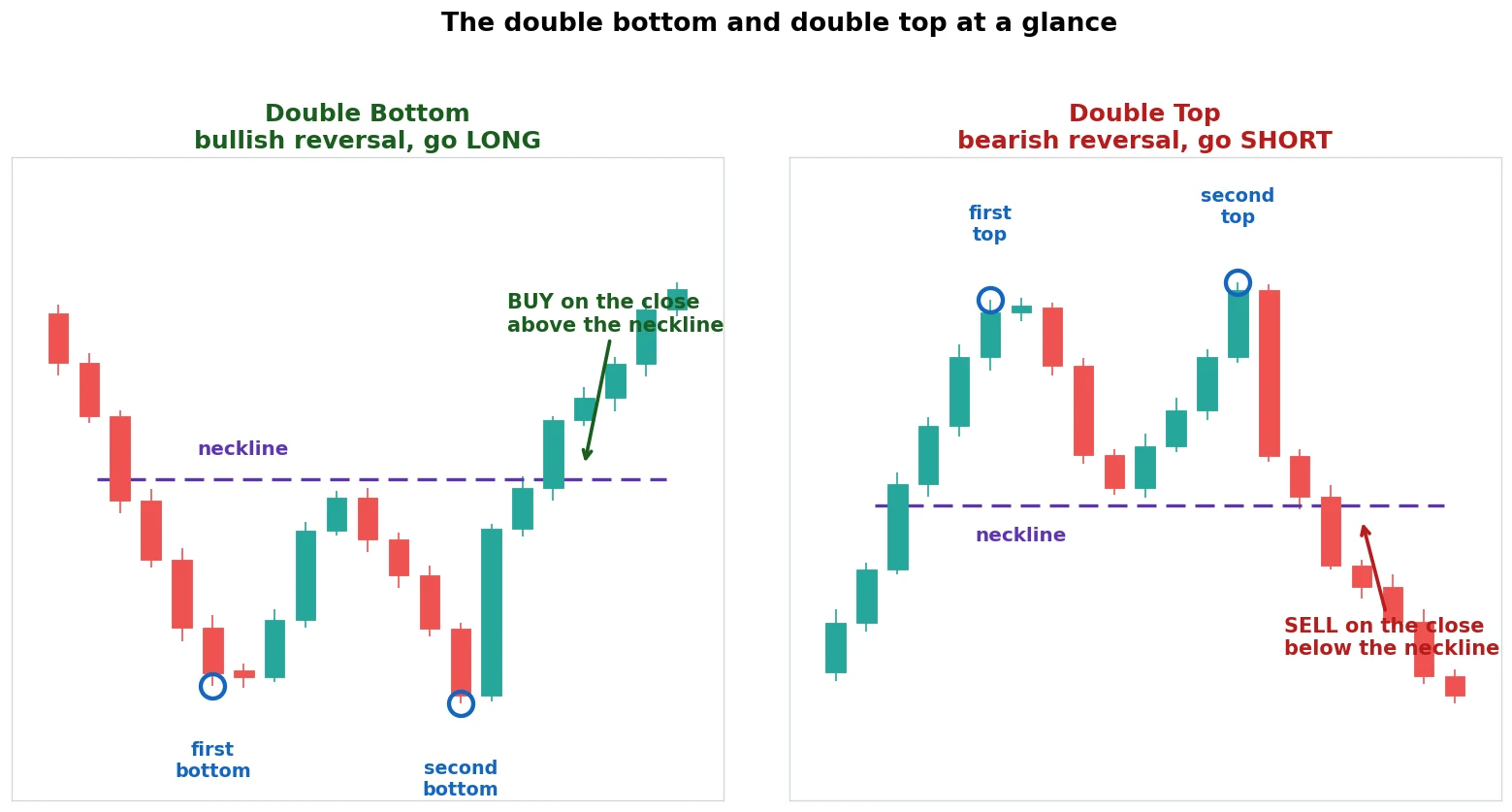

Why these patterns form
Both patterns represent a market that tested a level twice and got rejected both times.
Double top: price pushes to a resistance zone (the first top). Sellers defend it, price pulls back. Buyers try again (the second top). Sellers defend the same level again. The second failure signals that the resistance is strong and buyers are losing conviction. When price drops below the swing low between the two tops, short positions trigger in volume.
Double bottom: the mirror; price tests a support level twice, fails to break it both times, and reverses upward.
The two-attempt structure matters because it shows the level was genuinely defended, not just luck. A single rejection could be a thin order; two rejections at the same level suggests systematic selling (or buying).

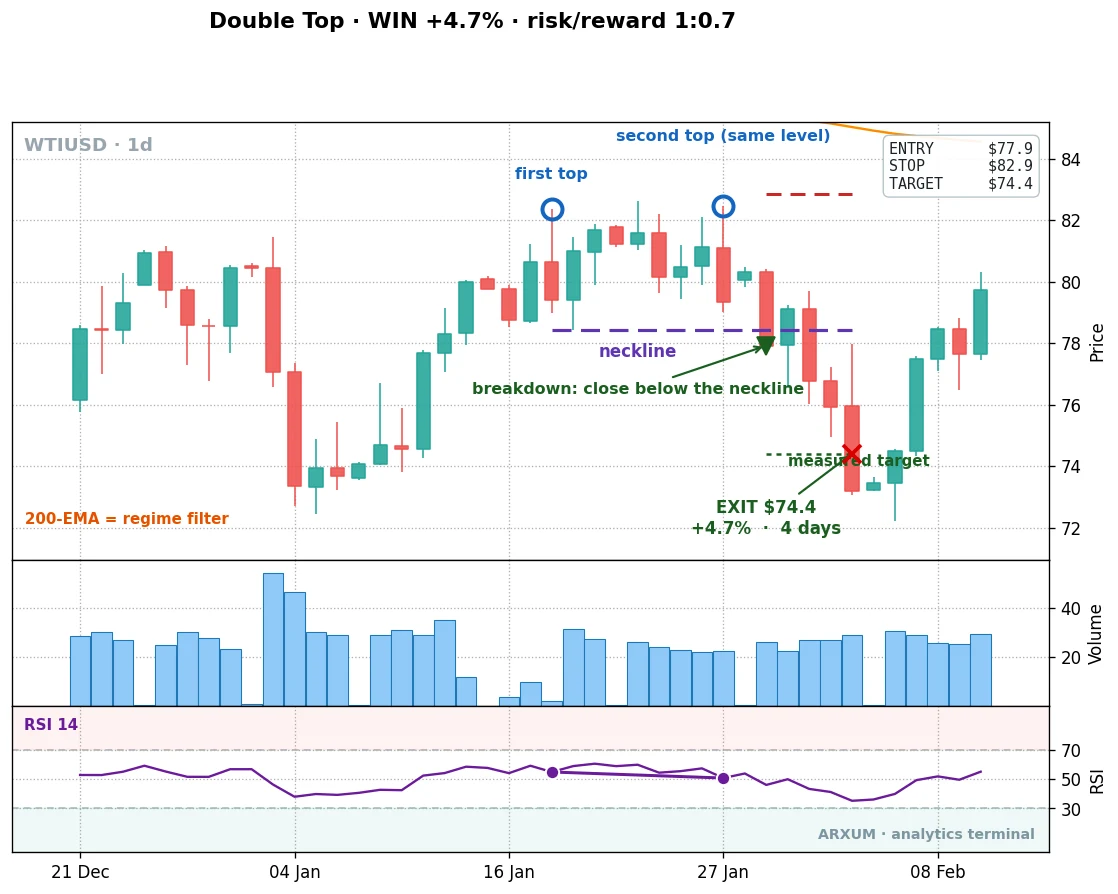

Double top: anatomy and trading rules
Entry: close below the neckline (the swing low between the two tops). Not a wick; the candle body must close below.
Stop: above the most recent high (the second top), plus a small buffer. If the second top is at 1.1200, your stop goes to 1.1215.
Measured target: the height of the pattern (resistance to neckline) subtracted from the neckline. If resistance is at 1.1200 and the neckline is at 1.0900, the distance is 300 pips. Target = 1.0900 – 300 pips = 1.0600.
Volume note: ideally, volume on the second top is lower than on the first: weaker buying pressure. The neckline breakdown should have above-average volume.
Time between the tops: patterns with 2-8 weeks between the two tops on daily charts tend to be stronger than patterns where the two tops are very close together (which can be a double-tap consolidation, not a reversal).

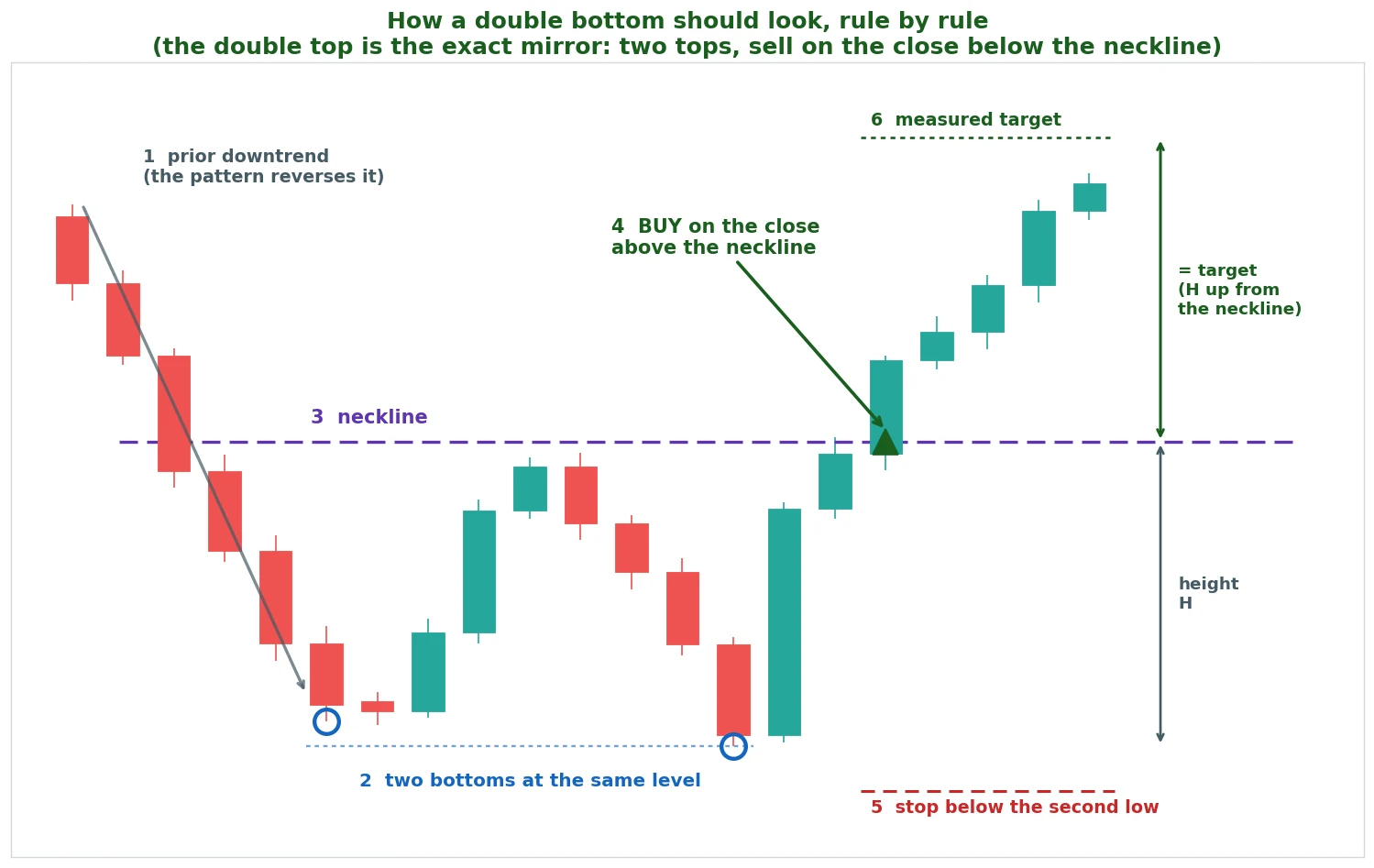

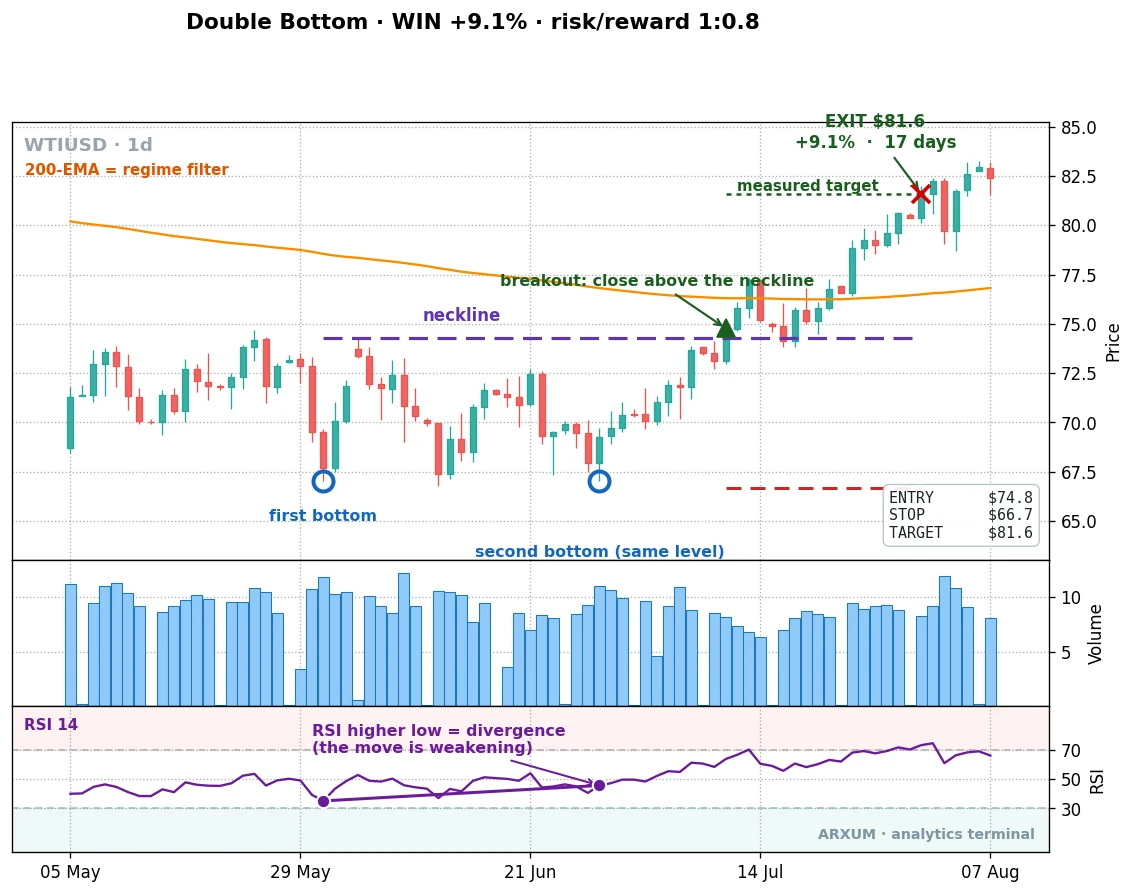

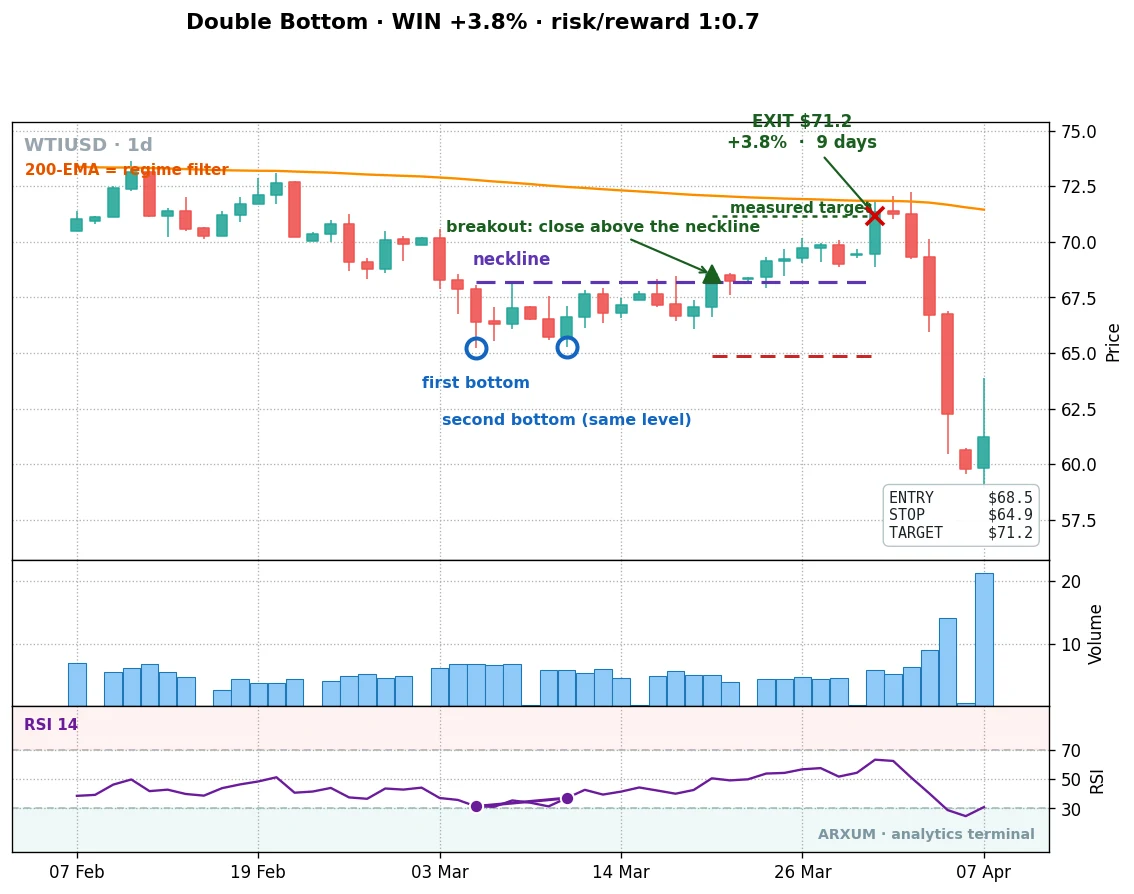

Double bottom: anatomy and trading rules
Entry: close above the neckline (the swing high between the two bottoms).
Stop: below the second bottom’s low, plus a small buffer. Measured target: the height of the pattern (neckline to support) added to the neckline breakout. If support is at 1.0600 and the neckline is at 1.0900, the target is 1.1200.
The double bottom tends to be more reliable than the double top. Markets fall fast and recover slowly, so the second bottom forms with more deliberation, more time for confirmation, and cleaner structure.
What separates a valid pattern from noise
Three things that mark a genuine double top or bottom:
Distinct peaks/troughs: the two highs (or lows) should be clearly defined, not just minor wiggles in a range. If you need to zoom in to see the double structure, it’s too small to trade.
Meaningful level: the two tops should occur at a resistance that has prior history: a previous swing high, a round number, a major moving average. A double top at a random price in open air is far weaker than one at 1.1200 on EUR/USD where price reversed twice in the past.
A real pullback between them: the swing low (or high) between the two tops should retrace at least 38% of the pattern height, ideally 50%+. A tiny dip that barely registers isn’t a real neckline; it’s a double-top attempt that never pulled back properly.
Live account results: EUR/USD 6 months

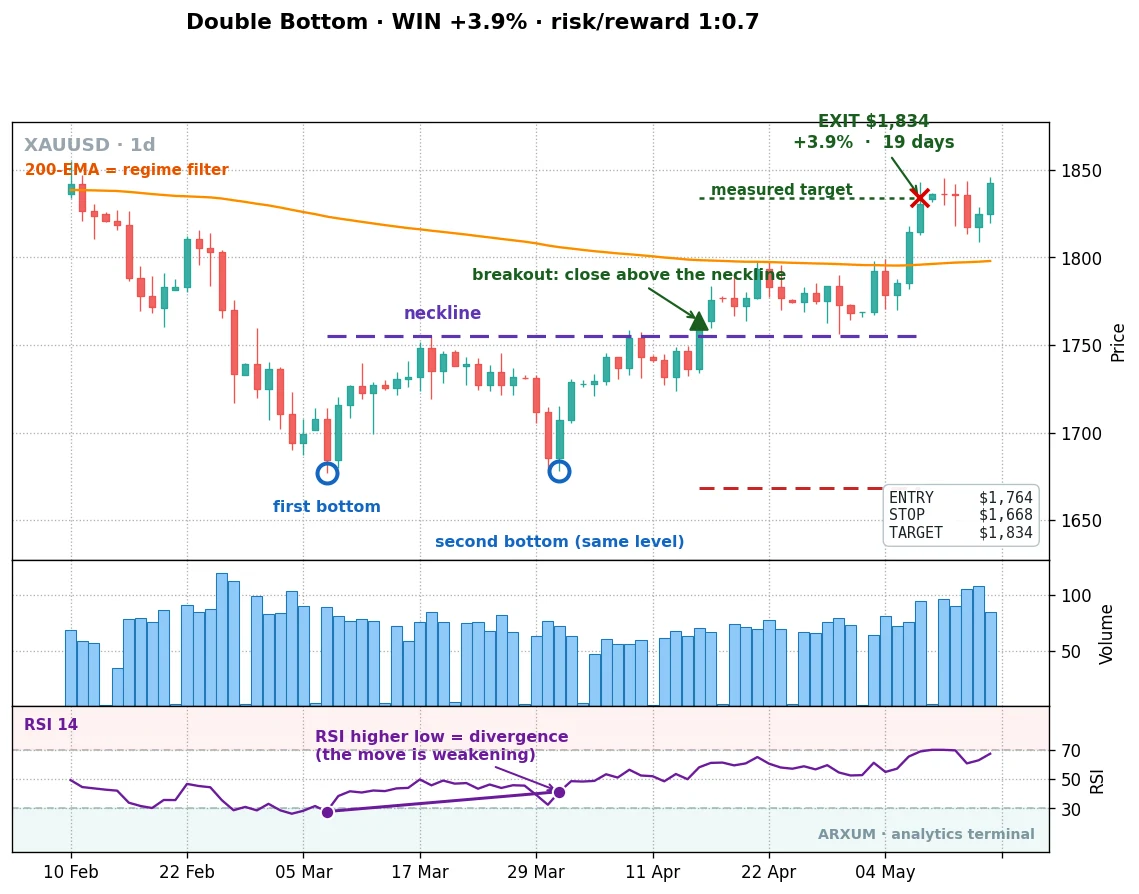

For the indicators we use to confirm these setups (RSI divergence, volume), see swing trading technical analysis.
We tracked double top and bottom setups on EUR/USD daily chart over 6 months (October 2025 – March 2026), filtering for patterns where the resistance/support level had prior history and the pullback between peaks/troughs retraced at least 40%.
19 qualified setups. 13 completed to the measured target. 6 failed.
Double top/bottom: EUR/USD daily, Oct 2025–Mar 2026. Entry on neckline close, stop above/below second top/bottom.
| $150 deposit entry | $600 deposit optimal | |
|---|---|---|
| Lot size | 0.01 | 0.04 |
| Risk per trade (1%) | $1.50 | $6.00 |
| Setups / 6 months | 19 | 19 |
| Win rate | 68% | 68% |
| Net P&L (6 months) | +$47 | +$188 |
| Account growth | +31% | +31% |
Trading involves risk. Past results do not guarantee future performance. Never risk more than you can afford to lose.
Trade EUR/USD, Gold, and Crypto with 0.7-pip spreads. Open a Standard account in under 5 minutes.
Entry levels, stop losses, and lot sizes. Updated every trading day. Join free.
FAQ
What is a double top chart pattern?
How do I trade a double bottom pattern?
What is the difference between a double top and double bottom?
How do I measure the target for a double top?
How do I know if a double top is real or just resistance?

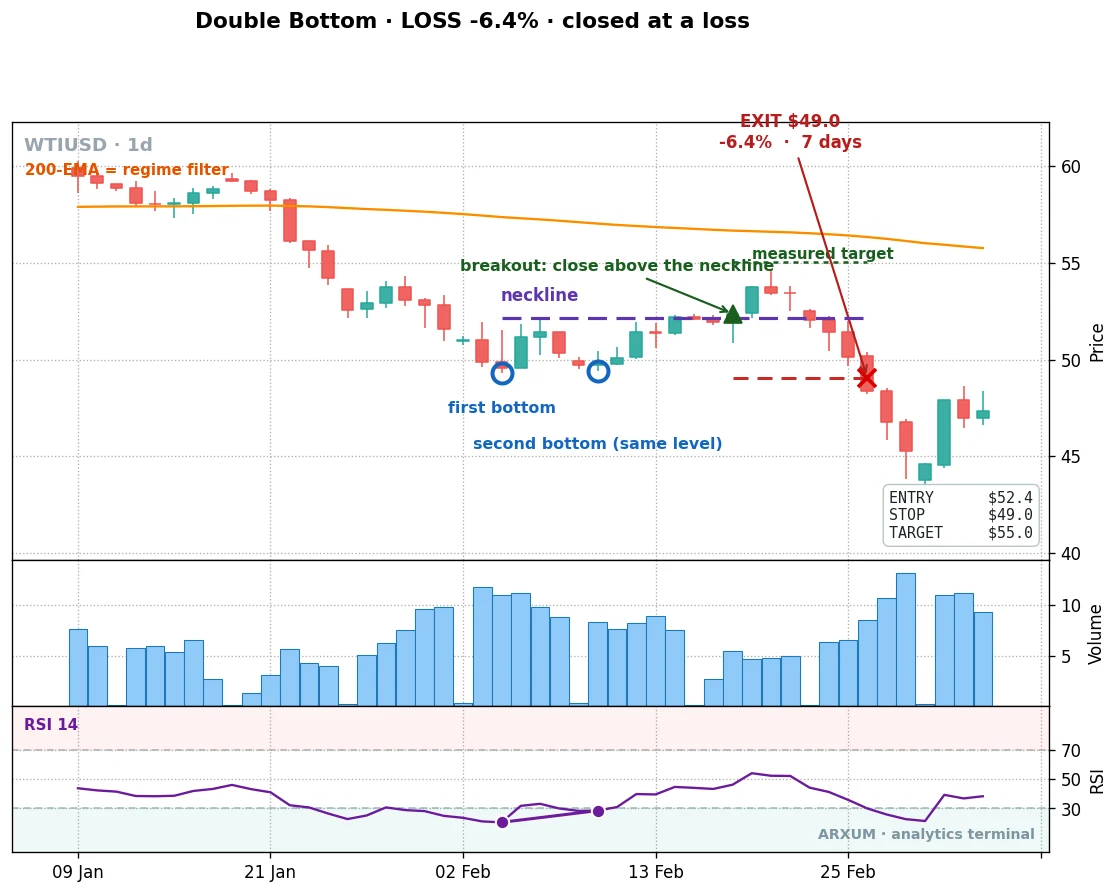

Can double tops and bottoms fail?
